How to run ZenTao in Kubernetes with NFS

2020-11-30 10:51:13
Troy
Original 2079
Summary : This article explains how to run ZenTao in Kubernetes with NFS.

How to run ZenTao in Kubernetes with NFS

1. Test in Virtual host

Files needed to be edit

/opt/zbox/app/zentao/config/my.php
/opt/zbox/app/zentaoep/config/my.php
/opt/zbox/app/zentaopro/config/my.php
/opt/zbox/etc/php/php.ini
# Edit Port in it
/opt/zbox/etc/apache/httpd.conf

Create Group and User

Otherwise there might be AH00544: httpd: bad group name nogroup


useradd nobody
groupadd nogroup

Keep or rm them on your own

# Where attachments are
/opt/zbox/app/zentao/www/data/upload
# ZenTao auto backup
root/opt/zbox/app/zentao/tmp/backup

Edit the above file and replace database as yours, I am using Alicloud RDS here.

After editting, start MySQL database service

/opt/zbox/zbox start or,

sh run/apache/apachectl start or /opt/zbox/run/apache/httpd -k start

2. Dependencies work before run container

Since I have uploaded some pictures before, I need to use storage here.

Create a script in /opt/run and link storage file to /opt/zbox

Install nfs

# Install nfs-utils
yum install-y nfs-utils
# Edit exports and grant privilege
cat>>/etc/exports<<EOF
/opt/ 192.168.0.0/16(rw,no_root_squash,sync)
EOF
# Start nfs service
systemctlenablerpcbind.service
systemctlenablenfs-server.service
systemctl start rpcbind.service
systemctl start nfs-server.service
systemctl stop firewalld
systemctl disable firewalld
rpcinfo -p
# exportfs nfs
exportfs -r
exportfs

Create dockerfile

Since I want to link /opt/zbox/run with /opt/

So I need to keep one service in background

Create start.sh in /opt/run/

nohup/opt/run/apache/httpd -k start&
tail-999f /opt/run/nohup.out

Create dockerfile in /opt/run/

FROM harbor.aircourses.com/kubernetes/jdk-1.8.0_161:v1.1
MAINTAINER PDABC Enterprise Container Images <[email protected]>
RUN (useradd nobody;groupadd nogroup )
COPY run /opt/run
ENV LANG=en_US.UTF-8
ENV LANGUAGE=en_US.UTF-8
ENTRYPOINT ["sh", "/opt/run/start.sh"]

Docker build and push

docker build -f Dockerfile-zbox-80 -t harbor.aircourses.com/kubernetes/zbox:v3
docker push harbor.aircourses.com/kubernetes/zbox:v3

3. Test in Kubernetes

Create pv.yaml

# Create nfs-PV
---
apiVersion:v1
kind:PersistentVolume
metadata:
     name:nfs-pv
     namespace:default
     labels:
        pv:nfs-pv
spec:
     capacity:
        storage:100Gi
     accessModes:
        -  ReadWriteManypersistentVolumeReclaimPolicy:Retain
     nfs:
        path:/opt/zbox
        server:192.168.13.212
kubectl create -f pv.yaml

Create pvc.yaml

# Create NFS-pvc
---
kind:PersistentVolumeClaim
apiVersion:v1
metadata:
     name:nfs-pvc
     namespace:default
spec:
     accessModes:
        -  ReadWriteMany
        resources:
        requests:
            storage:100Gi
     selector:
        matchLabels:
            pv:nfs-pv
kubectl apply -f pvc.yaml

Create deployment.yaml

apiVersion:apps/v1
kind:Deployment
metadata:
# deployment name has nothing to do with svc and ingress binding
    name:  zbox-dp
    namespace:default
spec:
    replicas:1
    # labels is necessary when create template since Deployment.spec.selector is required field and it has to correspond template.labels
    selector:
        matchLabels:
             app:zbox
    # template defined details will apply to all the copies ( e.g. deployment pod ), labels can't be defined in template.spec.containers.Use "kubectl get pods --show-labels" to check
    template:
        metadata:
             labels:
                app:zbox
        spec:
             containers:
# It doesn't matter about containers name and svc binding with ingress
             -  name:zbox
                image:harbor.aircourses.com/kubernetes/zbox:v4
                volumeMounts:
                -  mountPath:/opt/zbox
                   name:zbox-data
                ports:
                -  name:HTTP
                   containerPort:80
             volumes:
             -  name:zbox-data
                 persistentVolumeClaim:
                     claimName:nfs-pvc
             imagePullSecrets:
                 -  name:myregistrykey
kubectl apply -f deployment.yaml

Create svc-zbox.yaml

apiVersion:v1
kind:  Servicekubectl apply -f pvc.yaml
metadata:
    name:zbox
    namespace:default
spec:
    type:ClusterIP
    selector:
        app:zbox
    ports:
    -  name:HTTP
       port:80
       targetPort:80
kubectl apply -f svc-zbox.yaml

Create ingress-zbox.yaml

apiVersion:apps/v1
kind:  Deployment
metadata:
#deployment name has nothing to do with svc and ingress binding
    name:zbox-dp
    namespace:default
spec:
    replicas:1
# labels are necessary when creating template since Deployment.spec.selector is a required field and it has to correspond template. labels
    selector:
        matchLabels:
             app:zbox
# template defined details will apply to all the copies ( e.g. deployment pod ), labels can't be defined in template.spec.containers.Use "kubectl get pods --show-labels" to check
    template:
        metadata:
             labels:
                app:zbox
        spec:
             containers:
# It doesn't matter about containers name and svc binding with ingress
             -  name:zbox
                image:harbor.aircourses.com/jiaminxu/zbox:v1.0
                volumeMounts:
                -  mountPath:  /opt/zbox
                   name:zbox-data
                ports:
                -  name:HTTP
                   containerPort:80
             volumes:
             -  name:zbox-data
                persistentVolumeClaim:
                    claimName:nfs-pvc
             imagePullSecrets:
                -  name:myregistrykey
kubectl apply -f ingress-zbox.yaml

Visit ZenTao

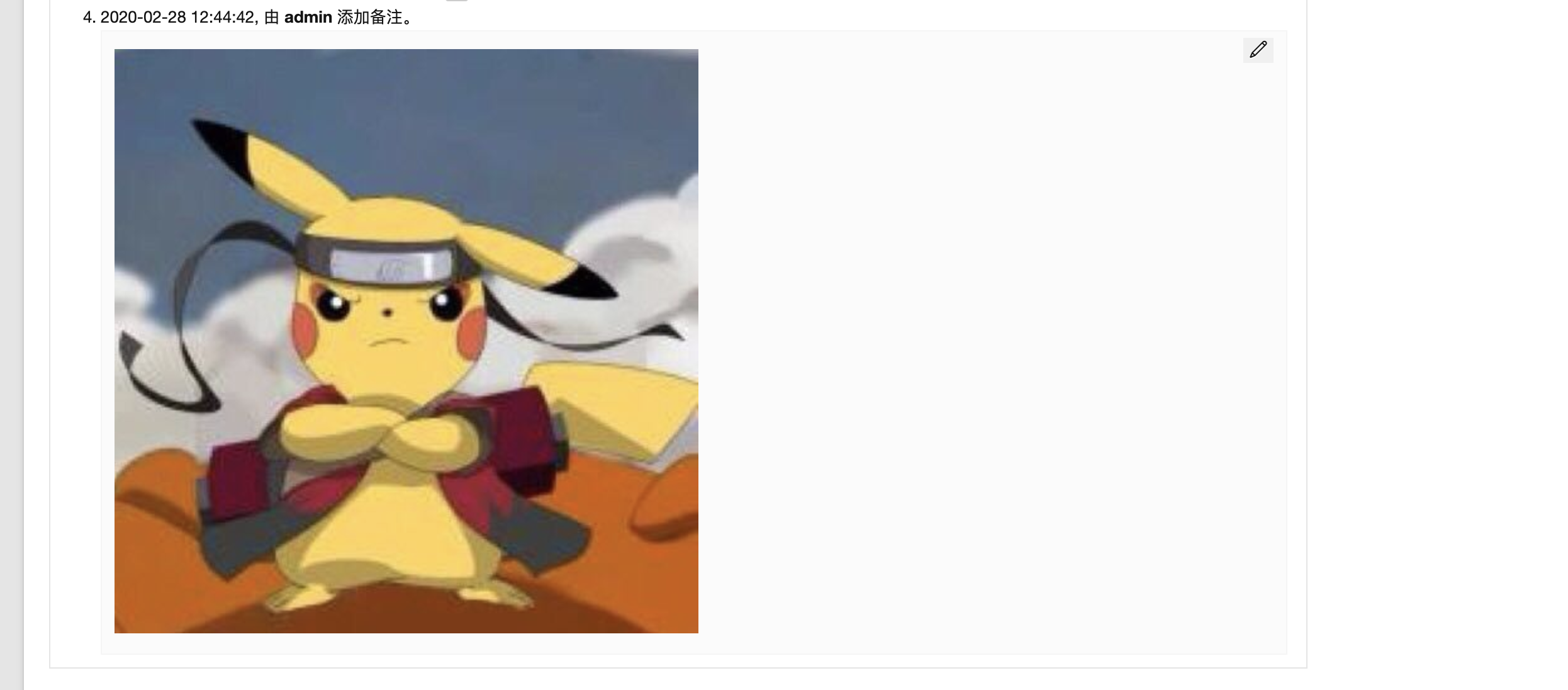

Upload a picture and check if NFS has loaded successfully.

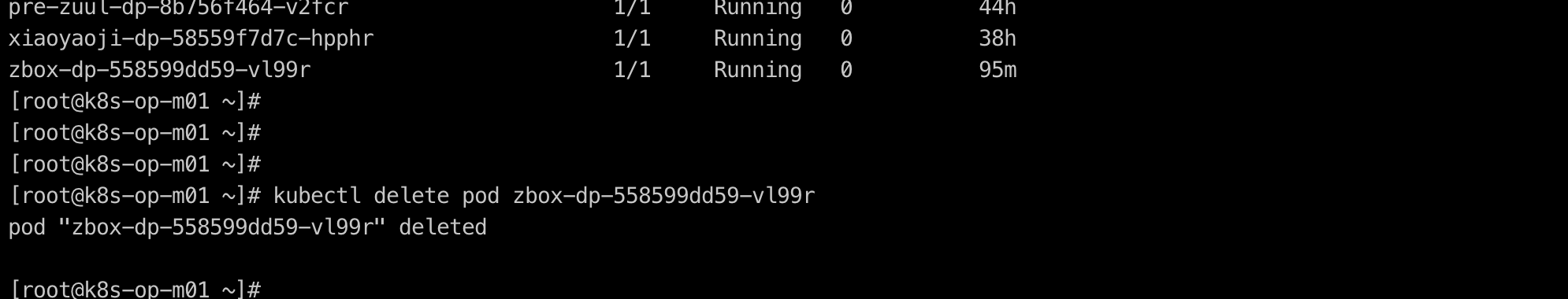

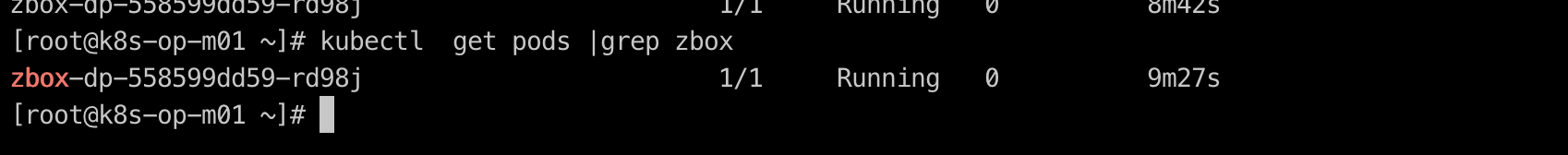

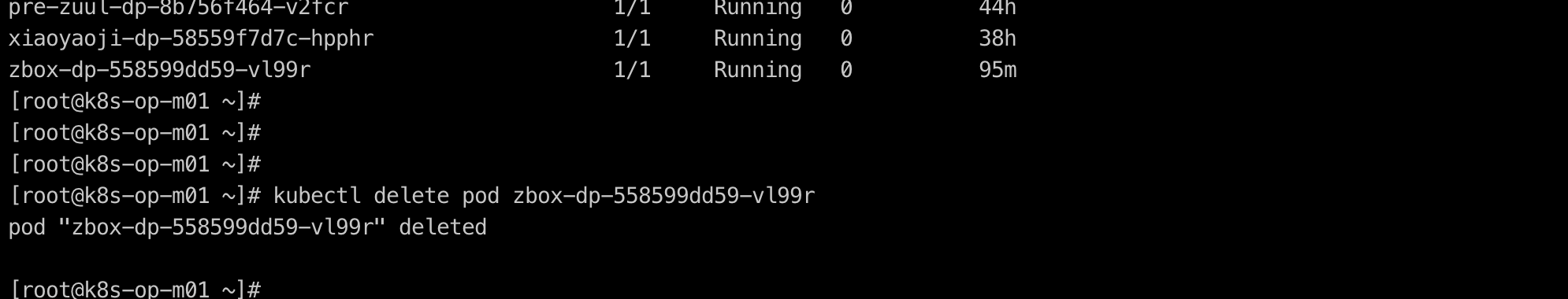

There will be another pod automatically loaded.

Check the record again and we can see that the picture is still there which indicates that the docker and storage loading are running fine.

Referrence

https://blog.csdn.net/xujiamin0022016/article/details/104571903
